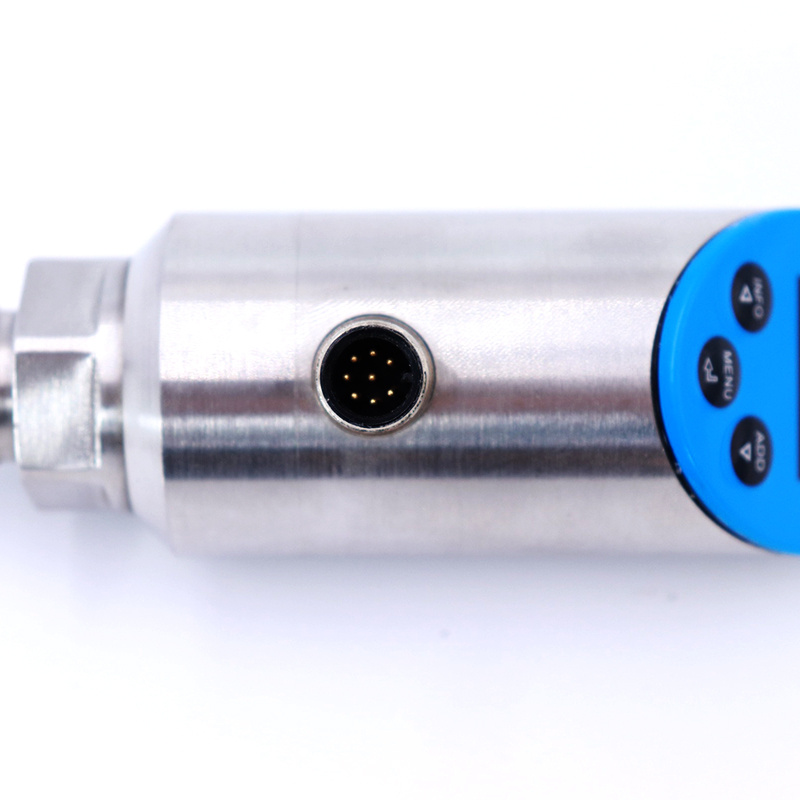

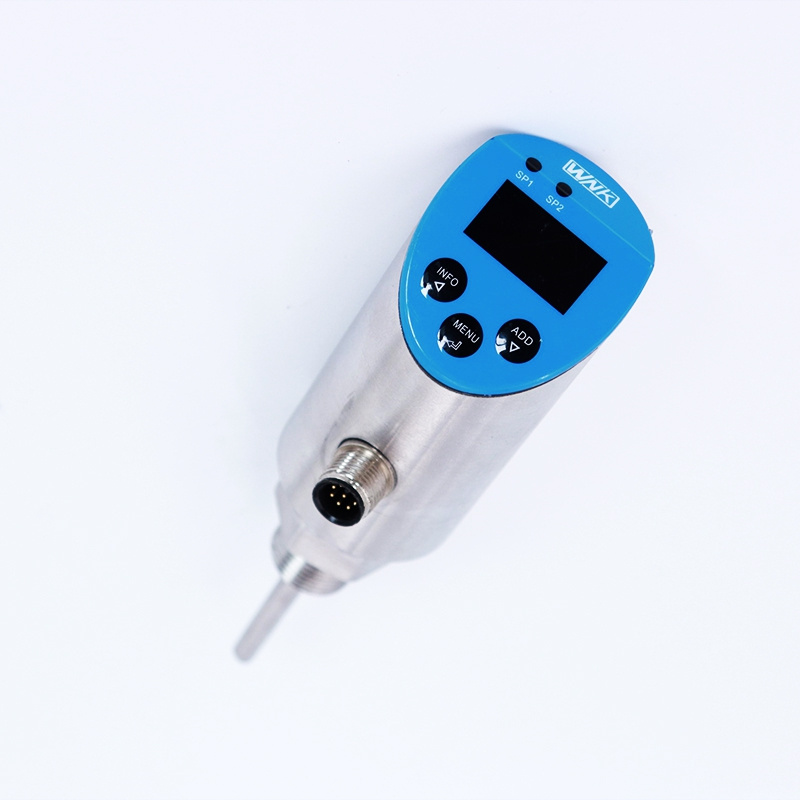

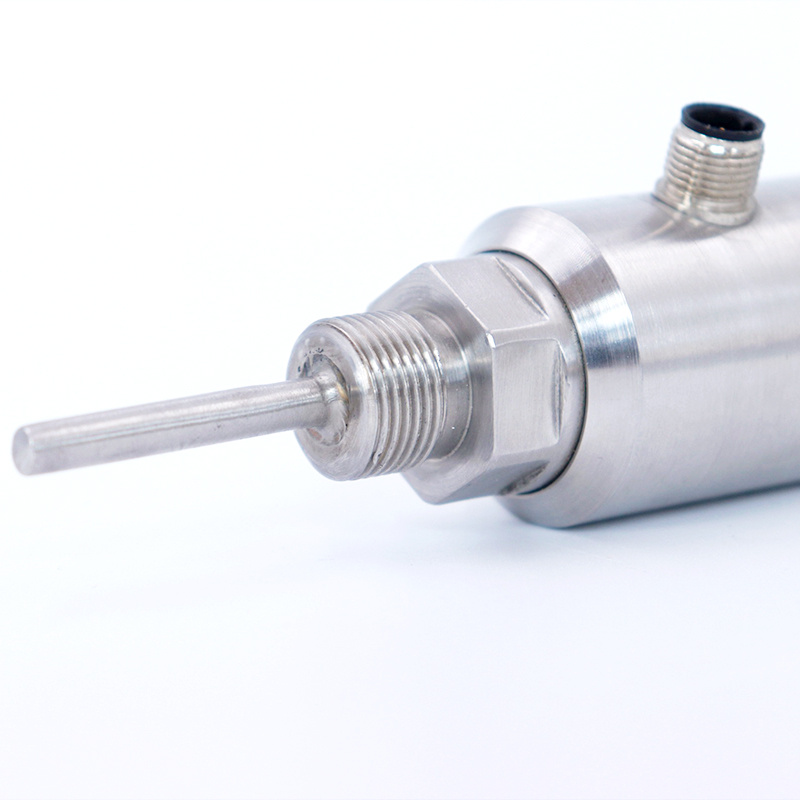

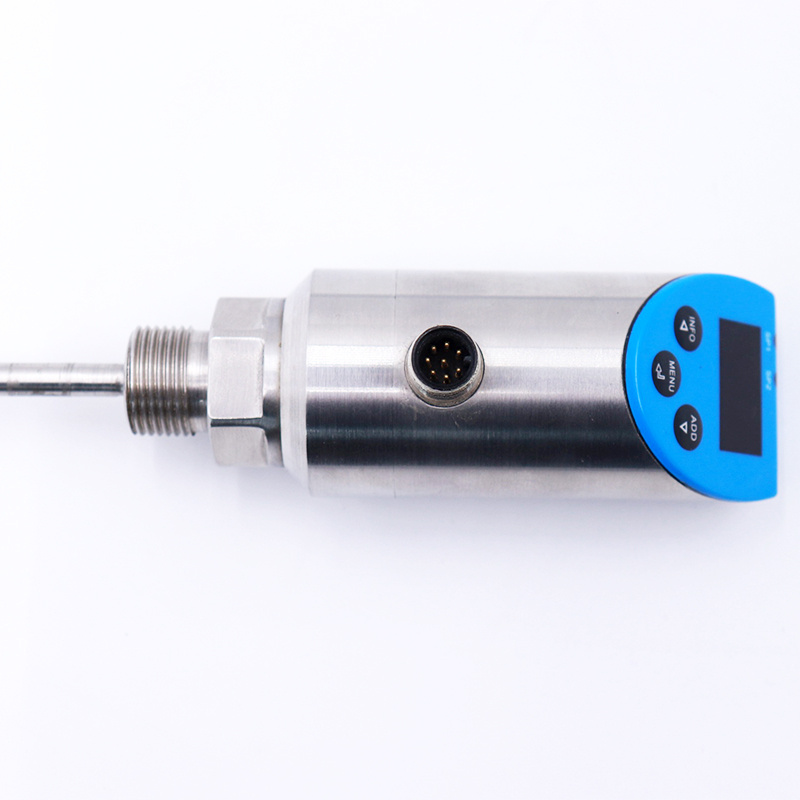

PT100 Electrical Temperature Switch for Hydraulic Oil and Liquid Measurement

PT100 electrical temperature switch for hydraulic oil and liquid measurement

Introduction - RTD PT100 electronic temperature transmitter switch
The temperature switch STS is robustly designed and easy to use. The STS is suited for temperature monitoring, measurement and control, such as used in cleaning liquid, hydraulic oil, heat-carrying agent and lubricant etc. It is temperature switch, transmitter and display in one and the same device. In its standard configuration it has two switching outputs (PNP or NPN). In addition, there are configurations available with an analog output signal (0...20mA| 420 mA or 0...5V| 010 V) as well as with RS485 Link.

Product Features - RTD PT100 electronic temperature transmitter switch
1. Smart type, with PNP/NPN switching.
2. Swithing points settable, NO/NC availalbe
3. With OLED display, with 5 digit available.
4. Provide RS485 communication for option.

REQUEST NOW

Product parameters:

SPS Intelligent Electronic Temperature Switch with OLED Display
Applicable media	Liquid, Gas, Steam
Measuring range	-50~260ºC
Output Signal	2×PNP + 0V~5VDC/10VDC + MODBUS(RS485)
Output Signal	2×PNP + 0mA/4mA~20mADC + MODBUS(RS485)
Accuracy	0.5% FS
Stability	±0.3% FS/year
Switch current	1.0A(Max.)
Switching type	Normally open / closed (settable)
Display	OLED (Optional)
Housing material	304 stainless steel
Mechanical connection	M20×1.5; 1/2-18NPT, 1/4NPT, Customize
Storge temperature	-40~80ºC
Process temperature	-30~80ºC
Protection class	IP65
