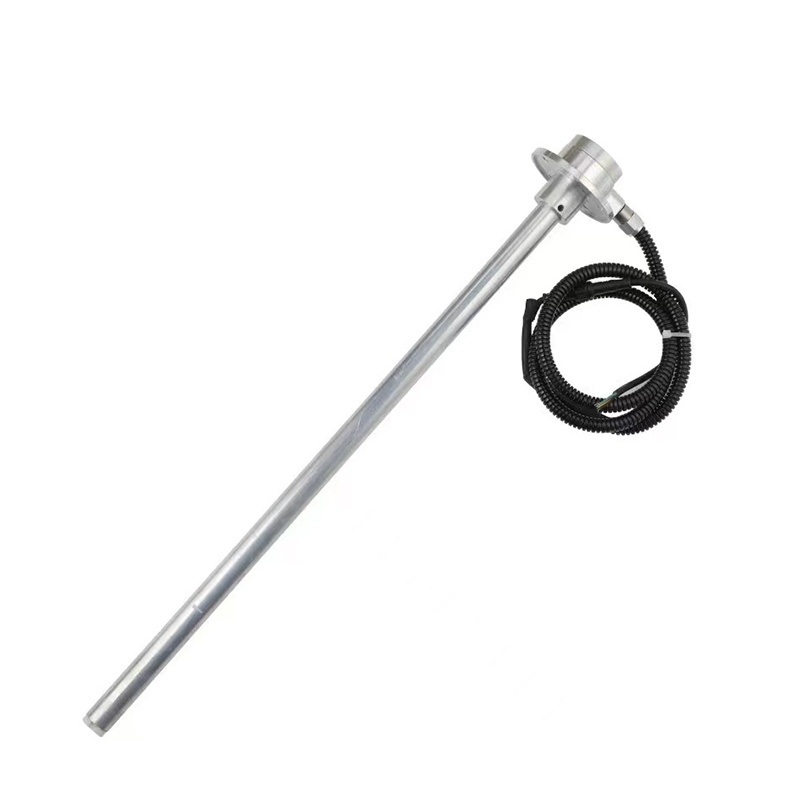

Capacitive Fuel Water Oil Diesel Tank Level Measurement Rod Liquid Level Sensor
Product Overview
Capacitive liquid level sensor adopts capacitive measurement technology, widely used in diesel, gasoline, lubricating oil, palm oil and other liquid level measurement, the core components of the product adopts industrial production technology and independent algorithm, through accurate temperature compensation and linear correction, with high precision, high stability and continuous measurement and other advantages.
The product is suitable for real-time measurement of fuel level of trucks, engineering machinery vehicles, buses, agricultural vehicles, special vehicles, generator sets, etc. Multiple types of output signals can meet the integration and compatibility of various products on the market.
Working Principle:

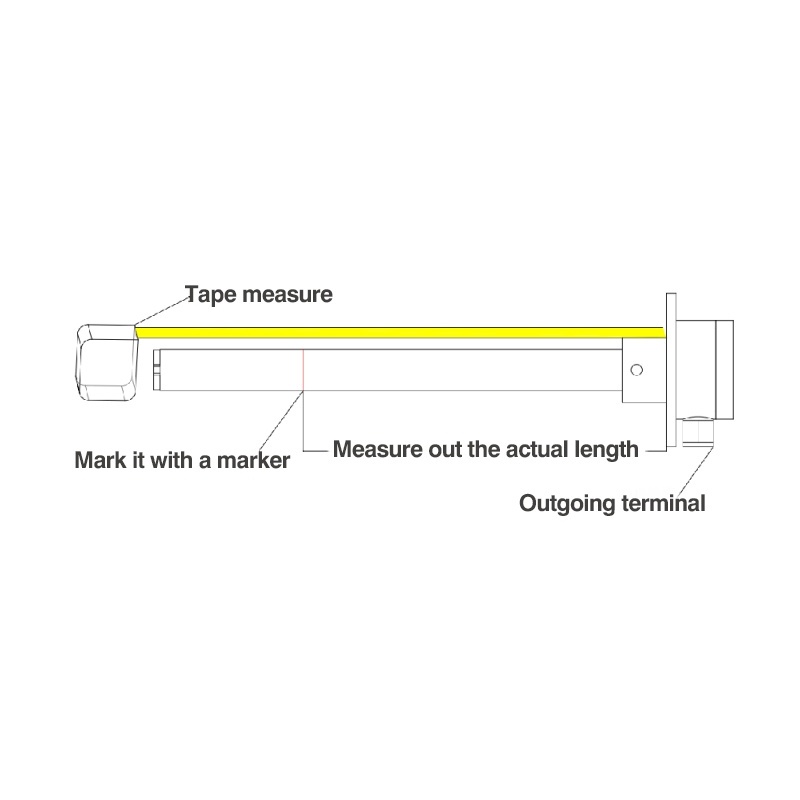

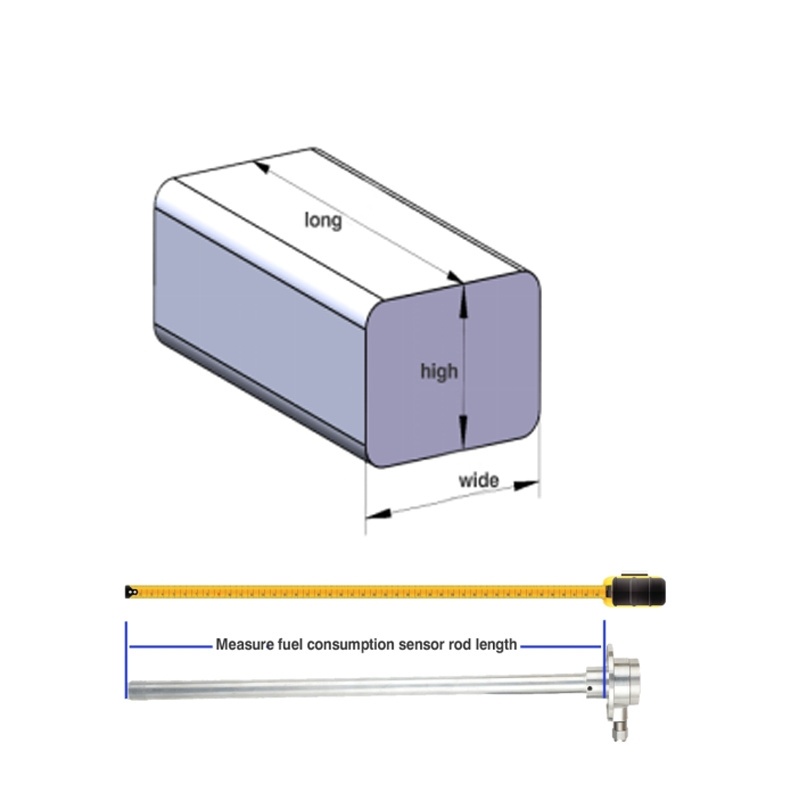

YJD-01 capacitive liquid level sensor is to continuously detect the horizontal height of oil level by the change of capacitance caused by the rise or decrease of fuel; The product can be arbitrarily truncated according to the height of the box, and can be adapted to the Beidou / GPS tracking system to monitor the fuel consumption of the fuel tank in real time.
Product parameters:
Main Performance
Simple installation, fixed firmly, easy to disassemble;
Top-mounted, strong stability, high reliability;
Dc 5V and 9 ~ 36V power supply, suitable for various positioning hosts and vehicles;
RS232/RS485/0-5V voltage analog four communication interfaces;
Built-in anti-interference structure and circuit, intelligent algorithm filtering, high stable output;
Built-in high-precision calculation model, millimeter-level measurement resolution, super signal strength, adapt to different non-conductive liquids;
Number | Project | Explain |
1 | Measurement Range | 0mm~150cm(It can be cut by itself) |
2 | CommunicationInterface | RS485\RS232\0~5V |
3 | Operation Temperature | -40℃~+90℃ |
4 | Working voltage | DC5V/9-36V |
5 | Measurement Accuracy | ±1.0% |
6 | Damping time | The 1s~1800s is available |
7 | Overall structure | Column type |
8 | Body material | Aluminium alloy |

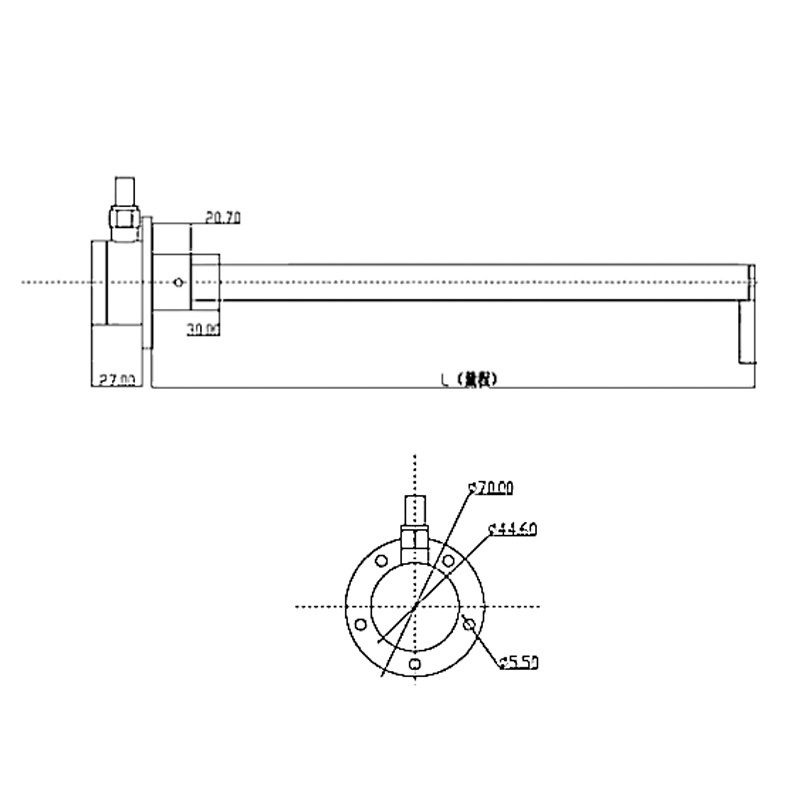

9 | flange dimensions | Outer diameter 70mm~ inner diameter 20mm |
10 | way to install | Flange mounted, top mounted |
11 | Connection mode | Analog/serial port is defined according to the product manual |
12 | Test medium | Gasoline/diesel/lubricating oil/cooling oil |
